SKF SMART TOOLS

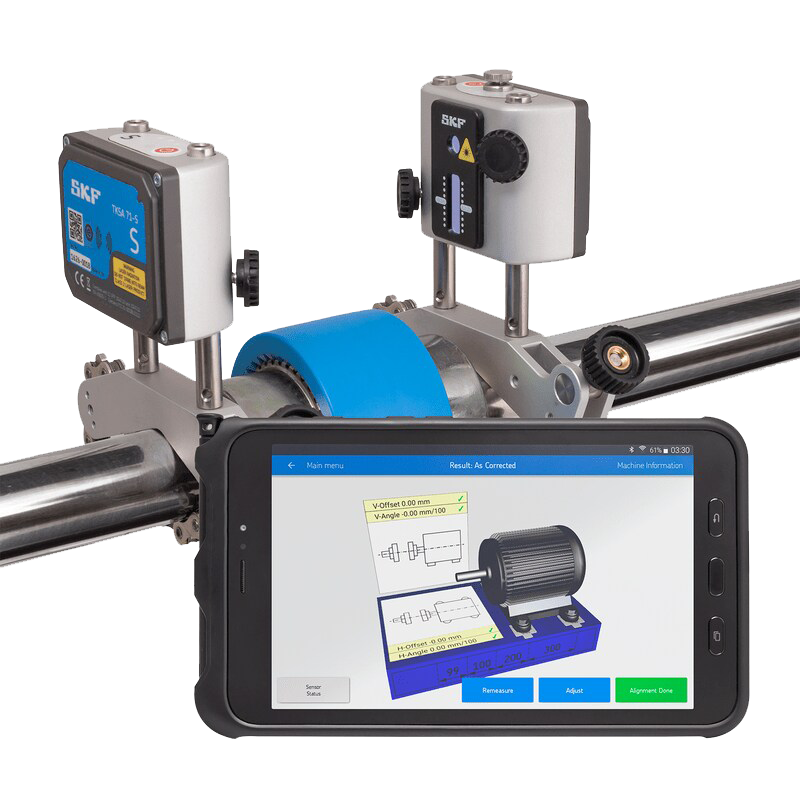

SKF Shaft Alignment Tool
TKSA 11 / 31 / 41 / 51 / 71

N

Easy-to-use – Intuitive software applications, guided alignment processes and explanatory videos

N

Wide range of applications – Comprehensive accessories and dedicated software applications

N

Superior alignment performance – Up to 10 m measurement distance, disturbance compensation, measurement flexibility, only 40° total rotation, automatic measurement and customised alignments with target values

N

Protection against harsh environments – Completely sealed measuring units (IP67) to withstand dust and water

N

Ultra-compact measuring units – Use in extremely narrow spaces

N

Robust carrying case – Excellent protection, convenient transport and wireless in-case charging

N

Accessories – Extensive range of accessories is available.Accessories – Extensive range of accessories is available.

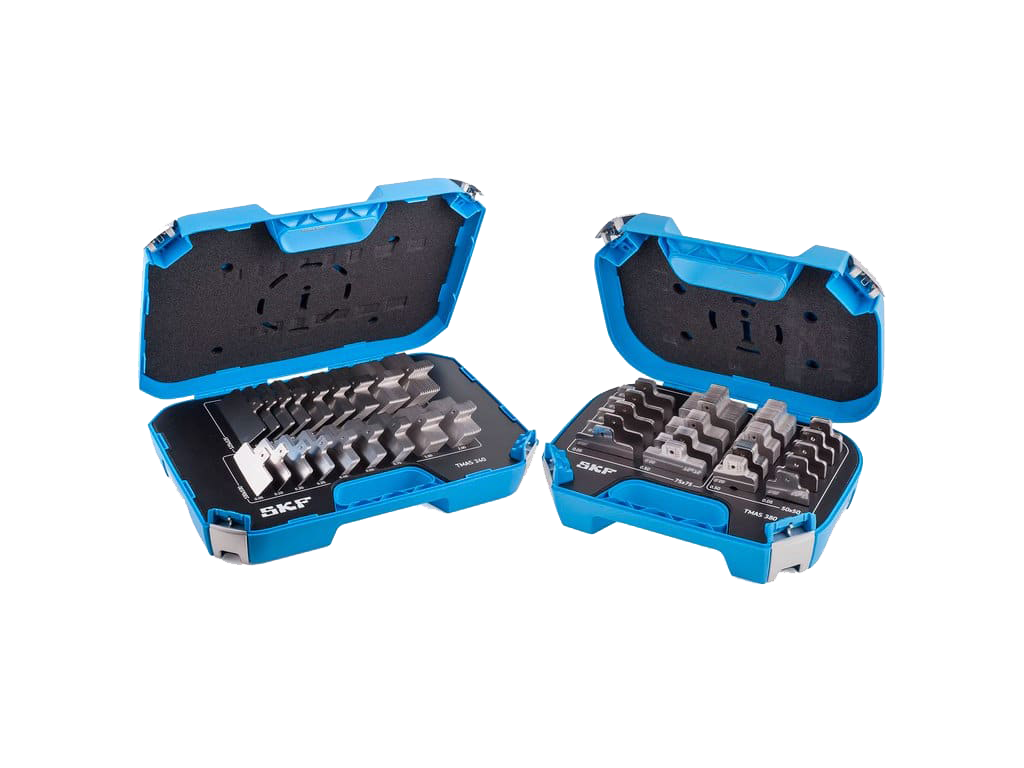

SKF Machinery Shims TMAS series
TMAS 340 / 360 / 510 / 720

Accurate machine adjustment is an essential element of any alignment process.

N

Made of high quality stainless steel, allowing re-use

N

Easy to fit and to remove

N

Close tolerances for accurate alignment

N

Thickness clearly marked on each shim

N

Fully de-burred

N

Pre-cut shims are supplied in packs of 10 and complete kits are also available

N

Shim packs and kits are available with thicknesses in millimeter and inch

SKF Belt Alignment Tool
TKBA 10 / 20 / 40

Laser belt alignment methods Using a laser belt alignment tool is quicker and more accurate than traditional methods. Belt alignment tools can either align the pulley faces or the pulley grooves.

Accurate pulley and belt alignment can help you:

N

Increase bearing life

N

Increase machinery uptime, efficiency and productivity

N

Reduce wear on pulleys and belts

N

Reduce friction and thereby energy consumption

N

Reduce noise and vibration

N

Reduce costs of replacing components and machinery downtime

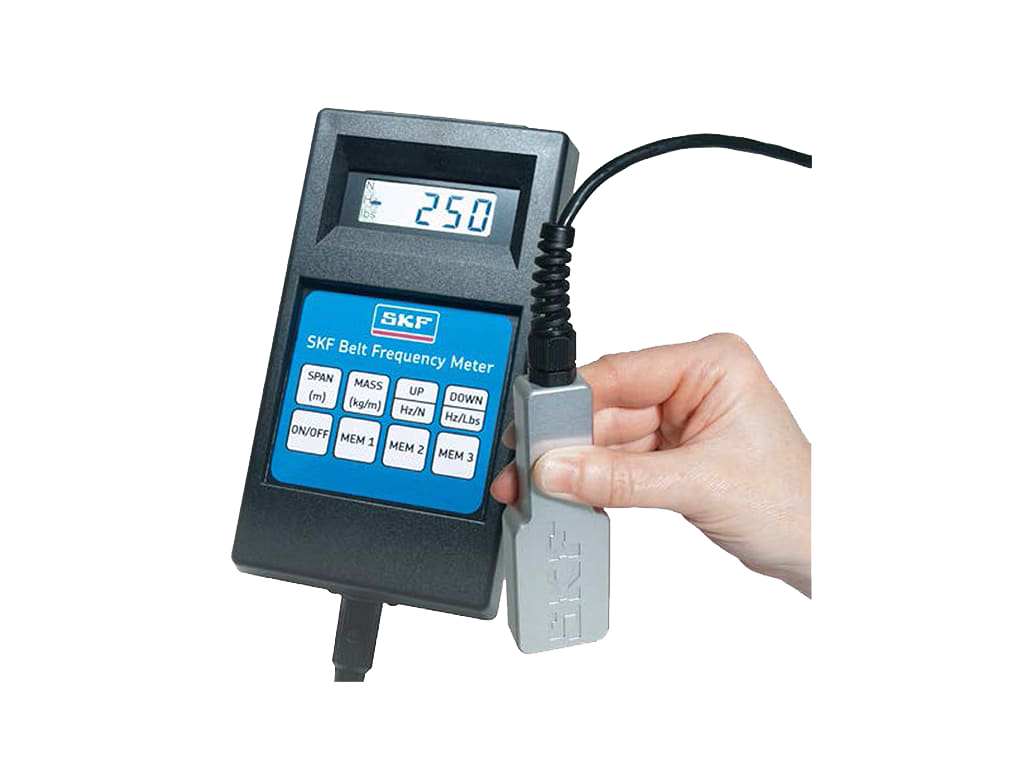

SKF Belt Frequency Meter
PHL FM 10/400

One of the most accurate belt tension measurement methods.Wide range of applicationsThe SKF Belt Frequency Meter consists of a hand-held meter and an optical sensor to provide contact-free belt tension measure- ments for most of the following belt types, even in a noisy environment:

N

V-Belts (wrapped, cogged raw edge, ribbed)

N

Banded V-Belts

N

Timing belts

The SKF Belt Frequency Meter is capable of measuring belt vibration frequencies from 10 to 400 Hz. Based upon the measured belt frequency, the SKF Belt Frequency Meter calculates belt tensions up to 9 900 N (2 200 lbs.).

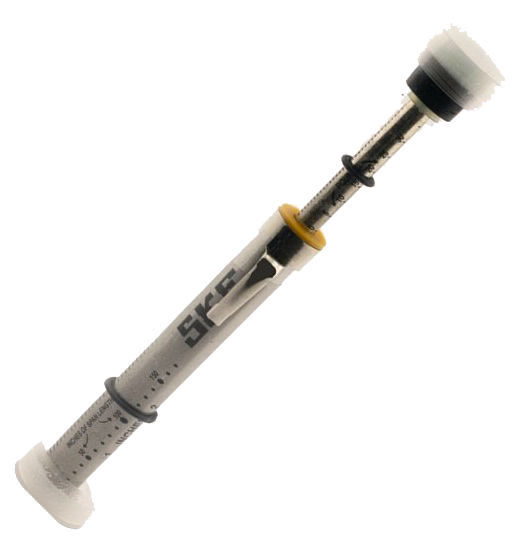

SKF Belt Tension Gauge

This gauge is available to determine the deflection force [kg] required to set and maintain V-belt tension. Table lists the required force needed to deflect a belt in mid-span relative to pulley diameter and speed.

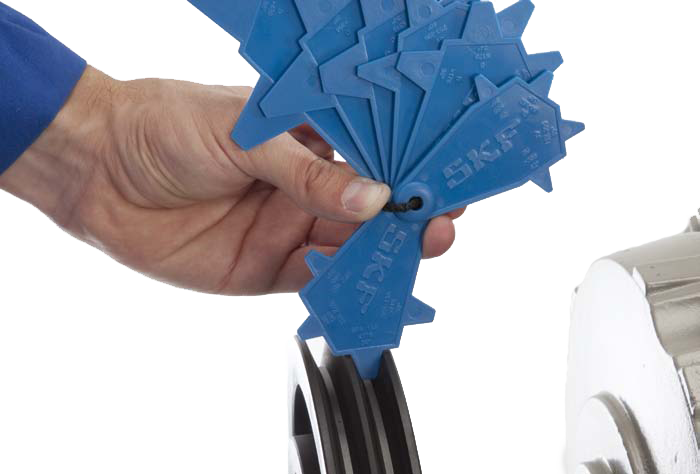

SKF Pulley Gauge

Use an SKF pulley gauge to check pulley wear. Pulleys should be replaced when more than 0.8 mm is detected between template and groove.
