HIGH PRESSURE

MULTISTAGE PUMP

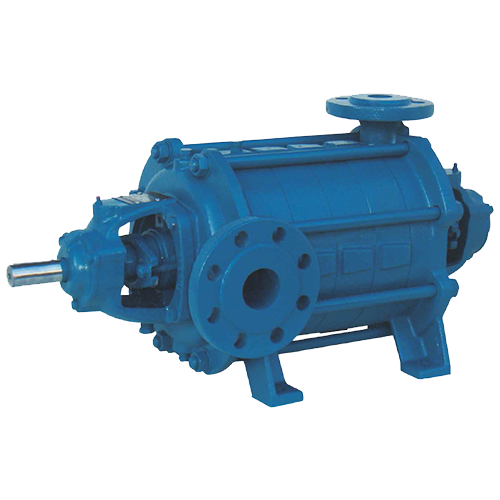

HEGA

The HEGA is an extremely robust and well proven ring section pump with closed impellers, designed for power, water and wastewater, pharmaceutical and chemical applications requiring trouble-free pumping of clear or slightly dirty liquids.

N

Flowrate : max. 190 m³/h

N

Head : max. 425 m

N

Speed : max. 3600 rpm

N
Material :

  • Cast iron (0B, 0C, 0D, 0E, 0R, 0S, 0U)
  • Stainless steel (4B)
  • Spheroidal graphite cast iron (1B)
N

Temperature : max. 190 ºC, depending on the shaft sealing and the

N

Casing pressure : max. 40 bar, depending on the operating temperature.

N

Shaft seal : Stuffing box or mechanical seal.

N
Flange connections :

  • Suction flange, according to DIN 2501 PN 16,
  • Discharge flange, according to DIN 2501 PN 40
N

Direction of rotation : Clockwise, looking from the drive end.

MSH

The MSH is a highly efficient ring section pump with combination balance drum and flange, extremely low NPSH, with a wide range of hydraulics and materials

N

Flowrate : max. 250 m³/h

N

Head : max. 1600 m

N

Speed : max. 3600 rpm

N

Temperature : -10 to +180°C

N

Pressure Rating : max. 160 bar

N
Shaft seal :

  • packed gland
  • mechanical seal
N

Direction of rotation :

  • counter-clockwise, when
  • viewed from discharge side

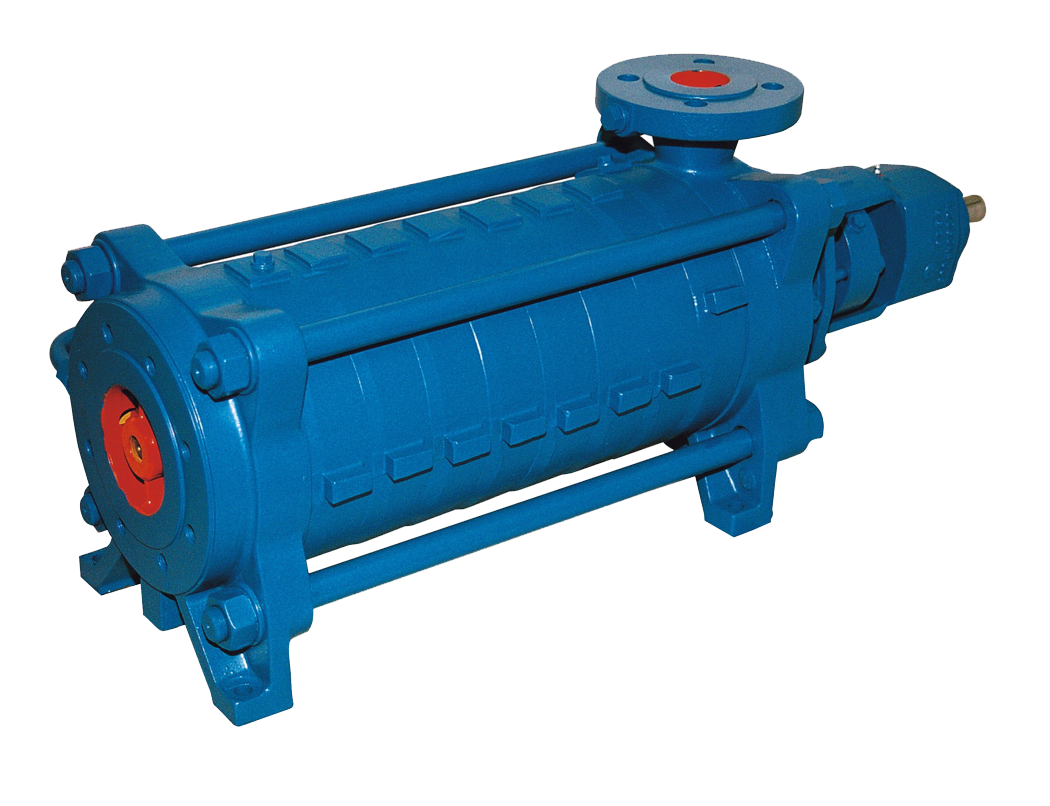

MSL / MSM

The MSM / MSL line is a highly efficient ring section pump with patented balancing system, extremely low NPSH, with a wide range of hydraulics and materials.

N

Flowrate : max. 450 m³/h

N

Head : max. 630 m

N

Speed : max. 3600 rpm

N

Temperature : -10 to +180°C *

N

Pressure Rating : max. 63 bar

N
Shaft seal :

  • packed gland
  • mechanical seal
N

Direction of rotation :

  • counter-clockwise, when viewed from discharge side * 200°C as special design for example pump feet are mounted concentric in accordance to ISO 9905

MSC

The MSC is a highly efficient ring section pump with patented balancing system, extremely low NPSH, with a wide range of hydraulics and materials.

N

Flowrate : max. 250 m³/h

N

Head : max. 1000 m

N

Medium temperature : -10°C to +180°C

N

Speed : 400 to 3600 rpm

N

Final pressure : max. 100 bar

N

Shaft sealing : packed gland or mechanical seal

N

Direction of rotation :

  • counter-clockwise, when viewed from discharge side
